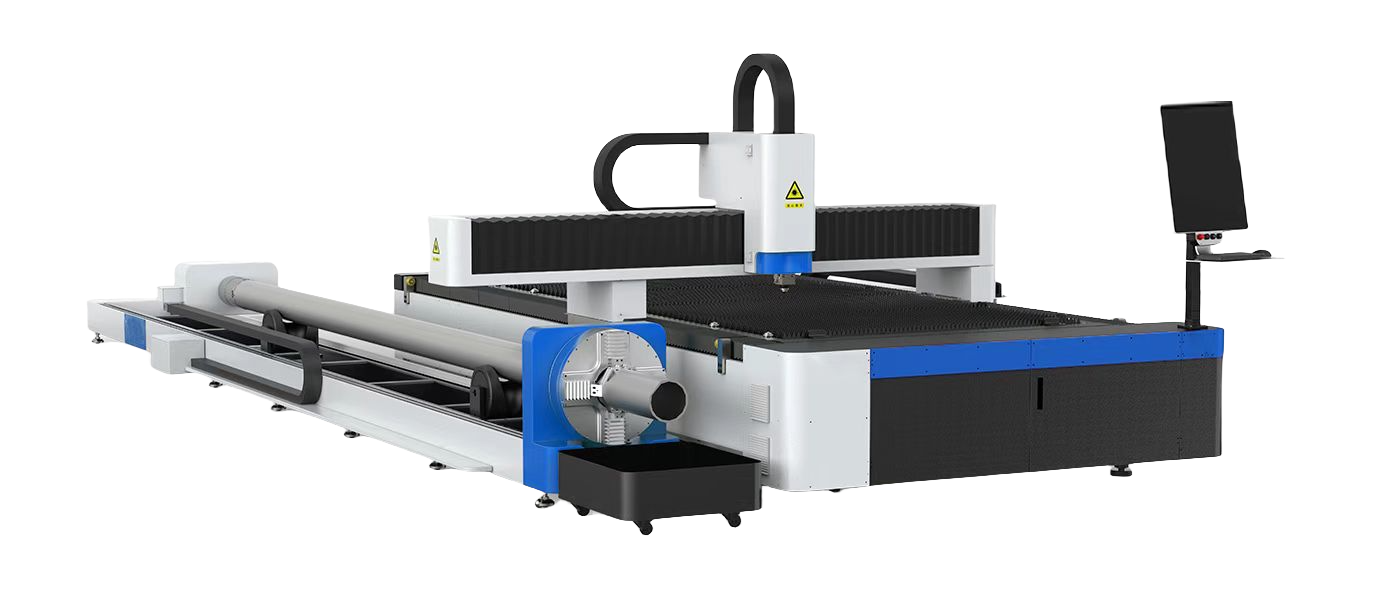

管板一体光纤激光切割机

一机两用，可切板，也可切管，经济实用

智能数控系统，方便快捷

线性直线导轨，运行稳定

大功率伺服驱动，动力强劲

机架经退火处理，不易变形

整

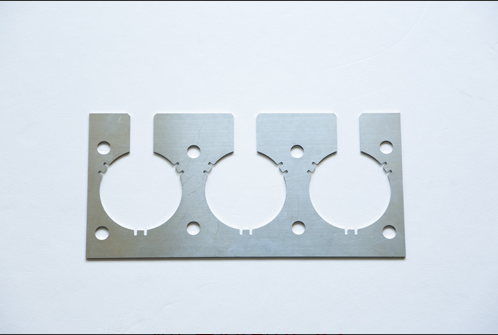

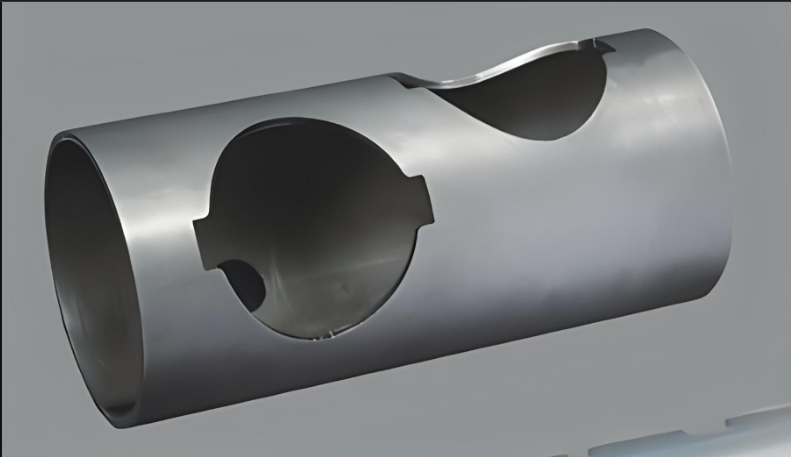

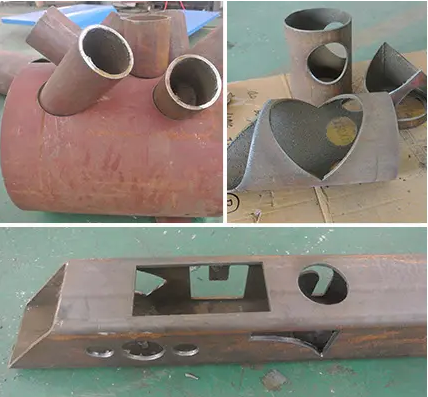

切割材料(Cutting Materials)：

可精密切割不锈钢、碳钢、合金钢、合金、镀锌板、铝、铜、金、银、钛等金属（板管）（跟功率有关）

Can precisely cut stainless steel, carbon steel, alloy steel, alloy, galvanized sheet, aluminum, copper, gold, silver, titanium and other metals (plates and tubes) (depending on power)

技术参数(Technical parameters)

设备特点(Equipment Characteristics)：

采用板管焊接高强度床身，600℃高温退火去应力/振动时效，保证长时间使用不变形

可配备全自动卡盘，瞬间即可自动定心夹紧工件，同时可调节气压大小，保证夹持力稳定可靠

全套采用日本进口伺服传动系统、保证精度更高、速度更快、运行更稳定

控制系统操作简单易学，兼容性更全面，

品牌激光器：进口国产任意选，性能稳定，使用寿命10万小时

人性化设计，用户体验更实用

进口电器元件

超低成本、消耗更低、可用空气辅助切割各种金属板材

切割速度快，效率高

一台设备可切割板材和管材，节约成本，性价比高。

Adopting plate tube welding for high-strength bed, annealing at 600 ℃ for stress relief/vibration aging, ensuring long-term use without deformation

Parallel exchange platform, 10S exchange time, faster speed, more time saving for loading and unloading

The complete set adopts servo transmission systems imported from Japan, ensuring higher accuracy, faster speed, and more stable operation

Control system operation is simple and easy to learn, with more comprehensive compatibility

Brand laser: Any choice of imported and domestically produced, with stable performance and a service life of 100000 hours

Humanized design for a more practical user experience

Fast cutting speed and high efficiency

A device can cut sheets and pipes, saving costs and offering high cost-effectiveness.

最大运行速度　　　　 Maximum operating speed	100m/min
最大加速度 Maximum acceleration	4G
X/Y定位精度x X/Y positioning accuracy	±0.03mm
X/Y重复定位精度 X/Y repeated positioning accuracy	±0.02mm
工作电压 working voltage	380V/50HZ
机床总功率 Total power of machine tool	15KW-40KW
机床运行温度 Machine tool operating temperature	5－45℃
机床运行湿度 Machine tool operating humidity80% non condensing	≤80%无凝结
传动方式 Transmission modeRack and pinion dual drive	齿条双驱

型　号 Model	LS-3015	LS-4015	LS-4020	LS-6020	LS-6025
切割范围 CuttingArea Customizable	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm	6000*2500mm
激光器功率 Laser power	1000W/1500W/2000W/3000W/4000W/6000W/8000W/12000W/20000W/30000W
切割管径 Cutting Tube Diameter	Φ20mm-350mm
电源要求 Power Supply	380V/50HZ
