激光切管机
自主设计卡盘
采用三卡盘，自动夹紧
零尾料切割无浪费
整管上料、整管下料

适配功率：3000Ｗ/6000Ｗ

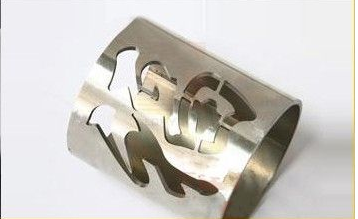

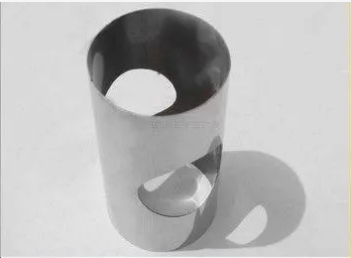

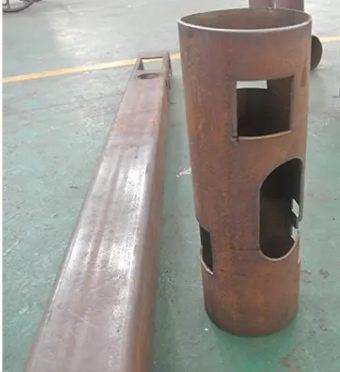

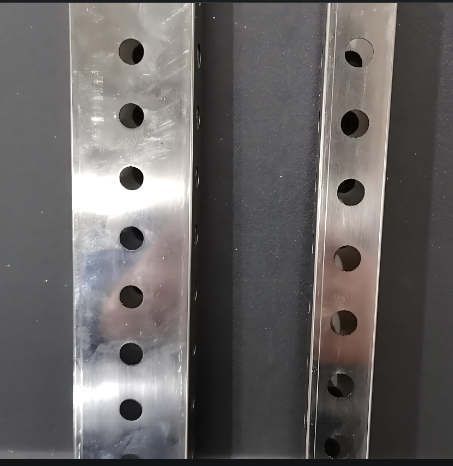

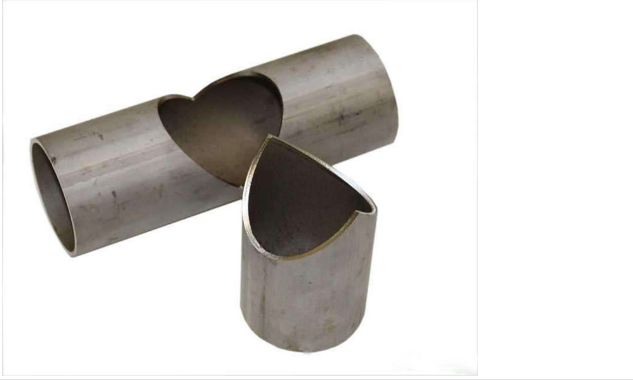

    • 切割材料(Cutting Materials)：

      钢管、不锈钢管、铝合金管、铝管、铜管
      Steel pipes, stainless steel pipes, aluminum alloy pipes, aluminum pipes, copper pipes
      产品特点（Product Features）

      设备特点(Equipment Characteristics)：

      全自动卡盘，瞬间即可自动定心夹紧工件，同时可调节气压大小，保证夹持力稳定可靠
      全套采用日本进口伺服传动系统、保证精度更高、速度更快、运行更稳定
      控制系统操作简单易学，兼容性更全面，
      品牌激光器：进口国产任意选，性能稳定，使用寿命10万小时
      人性化设计，用户体验更实用
      进口电器元件
      超低成本、消耗更低、可用空气辅助切割各种金属板材
      Fully automatic chuck, can automatically center and clamp the workpiece in an instant, and can adjust the air pressure to ensure stable and reliable clamping force
      The complete set adopts servo transmission systems imported from Japan, ensuring higher accuracy, faster speed, and more stable operation
      Control system operation is simple and easy to learn, with more comprehensive compatibility
      Brand laser: Any choice of imported and domestically produced, with stable performance and a service life of 100000 hours
      Humanized design for a more practical user experience
      Imported electrical components
      Ultra low cost, lower consumption, and air assisted cutting of various metal sheets
                      最大运行速度　　　　
      Maximum operating speed
      		100m/min
      最大加速度
      Maximum acceleration
      		4G
      X/Y定位精度x
      X/Y positioning accuracy
      ±0.03mm
      X/Y重复定位精度
      X/Y repeated positioning accuracy
      		±0.02mm
      工作电压
      working voltage
      		380V/50HZ
      机床总功率
      Total power of machine tool
      		15KW-40KW
      机床运行温度
      Machine tool operating temperature
      		5－45℃
      机床运行湿度
      Machine tool operating humidity80% non condensing
      		≤80%无凝结
      传动方式
      Transmission modeRack and pinion dual drive
      		齿条双驱







    • 型　号
      Model
      　
      LS-P3000/6000

      激光功率
      Laser power
      1000W/1500W/2000W/3000W/6000W
      切割范围(Cutting Range)

      Φ20mm-350mm*3000mm-6000mm
      电源要求
      Power Supply
      三相380V/50HZ







      注：工作幅面可根据客户要求而定制(Customizable Working Format)
