交换平台光纤激光切割机
钢制结构床身
智能切割系统
加速度快且平稳
最大联动速度120m/min

适配功率：3000W,  6000W，12000W

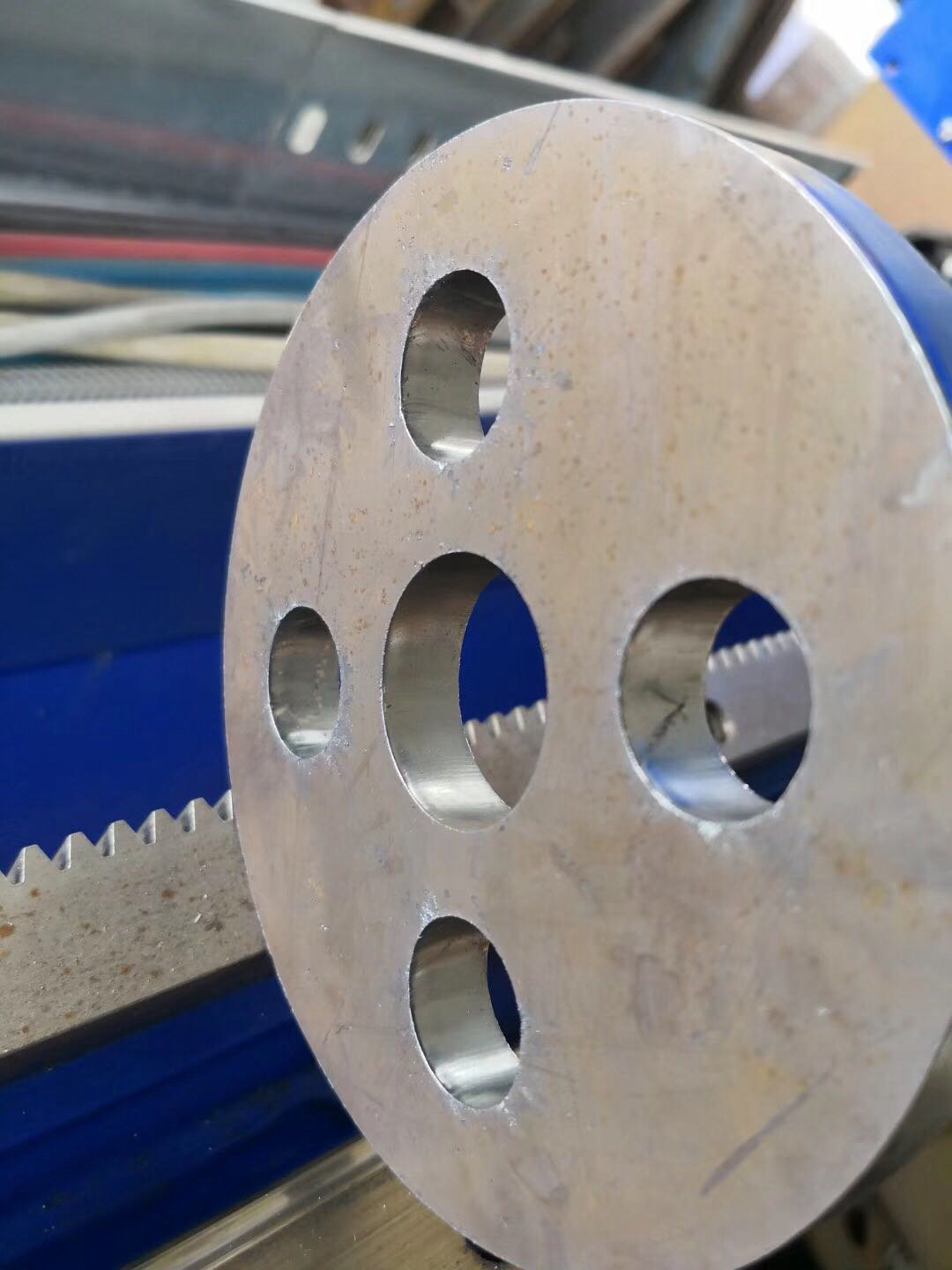

    • 切割材料(Cutting Materials)：

      碳钢、不锈钢、镀锌板、彩钢板、电解板、铝板、铝合金、黄铜、紫铜、猛铜、钛板等金属材料。
      Carbon steel, stainless steel, galvanized steel plate, color steel plate, electrolytic plate, aluminum plate, aluminum alloy, brass, purple copper, strong copper, titanium plate and other metal materials
      技术参数(Technical parameters)

      设备特点(Equipment Characteristics)：

      采用板管焊接高强度床身，600℃高温退火去应力/振动时效，保证长时间使用不变形
      平行式交换平台，10S交换时间，速度更快、上下料更省时间
      全套采用日本进口伺服传动系统、保证精度更高、速度更快、运行更稳定
      控制系统操作简单易学，兼容性更全面，
      品牌激光器：进口国产任意选，性能稳定，使用寿命10万小时
      人性化设计，用户体验更实用
      进口电器元件
      超低成本、消耗更低、可用空气辅助切割各种金属板材
      Adopting plate tube welding for high-strength bed, annealing at 600 ℃ for stress relief/vibration aging, ensuring long-term use without deformation
      Parallel exchange platform, 10S exchange time, faster speed, more time saving for loading and unloading
      The complete set adopts servo transmission systems imported from Japan, ensuring higher accuracy, faster speed, and more stable operation
      Control system operation is simple and easy to learn, with more comprehensive compatibility
      Brand laser: Any choice of imported and domestically produced, with stable performance and a service life of 100000 hours
      Humanized design for a more practical user experience
      Imported electrical components
      Ultra low cost, lower consumption, and air assisted cutting of various metal sheets
      Fully automatic oil lubrication
      Automatic smoke exhaust (zone based smoke exhaust)
                      最大运行速度　　　　
      Maximum operating speed
      		100m/min
      最大加速度
      Maximum acceleration
      		4G
      X/Y定位精度x
      X/Y positioning accuracy
      ±0.03mm
      X/Y重复定位精度
      X/Y repeated positioning accuracy
      		±0.02mm
      工作电压
      working voltage
      		380V/50HZ
      机床总功率
      Total power of machine tool
      		15KW-40KW
      机床运行温度
      Machine tool operating temperature
      		5－45℃
      机床运行湿度
      Machine tool operating humidity80% non condensing
      		≤80%无凝结
      传动方式
      Transmission modeRack and pinion dual drive
      		齿条双驱







    • 型　号
      Model
      　
      LS-3015

      LS-4020
      LS-6020
      LS-6025
      切割范围
      CuttingArea Customizable
      3000*1500mm
      4000*2000mm
      6000*2000mm
      6000*2500mm
      支持激光功率
      Laser power
      1000W/2000W/3000W/6000W/12000W/20000W/30000W/40000W
      定位精度
      Positioning Accuracy
      		0.05 mm
      重复定位精度
      Reposition Accuracy
      		0.03 mm
      电源要求
      Power Supply
      380V/50HZ







      注：工作幅面可根据客户要求而定制(Customizable Working Format)
